MEC600

AAM-TPL4000 2-Post Electro Hydraulic Lift

• Lifting Capacity:  4000kg
• Max. lifting Height: 2007mm
• Min. height: 110mm
• Total height: 3680 mm
• Inside column / Drive Thru: 2520 mm
• Raising time: 45Sec.
• Motor: S. Phase 220V, Option Available - 3 Hp, 3 Phase, 2.2 KW Phase
• Equilization Thru Cable
• Double Point Lock Release
• No Power Required While Descending
• 2 Full Stroke Cylinders
• Surface Finish: Powder Coating

AAM GC 3.OSLV Scissor Lift

• Capacity 3.0 Tonnes
• Motor Power Rating-2.2Kw/3Phase-380V/3PH or 220V/1PH
• Max Lifting Height-1900mm, Shut Height-105mm
• Safety Mechanism-Hydraulic safety Lock (Master & Slave Cylinder)
• Warranty-3 Years
• To be supplied as per Arena & NEXA C.I. Colors.

EV Battery Lift

Ease of operation.

•Mobile design and no need for installation,

•with side away platform to be available for more vehicles.

•24V low voltage control, 1.1KW for the motor.

•For mounting and dismounting the battery for electrical vehicles.

•With parachute valve and safety valve for safety.

•Perform stable and reliable.

"IM 240-i MIG-MAG Welder 230V"

• MIG/MAG welding - MIG brazing
• 4-roller drive with fine adjustment, wire speed 1.5-15 m/min.
• Holder for D300 coil (max. 17 kg)
• Display with hold function for welding current and voltage
• Dynamic adjustment - end pulse to detach the ball at the end of the wire
• Good welding behavior in the thin sheet range (0.6 mm steel welding).

• Dent Pulling is a technique where dent is removed from Box Panels without cutting them or drilling holes in the sheet from behind.

• The process involves a machine which makes a temporary tip weld on the surface of the sheet from where the dent is to be pulled.

• Once the tip is attached the technician needs to use a sliding hammer to pull at the tip.

• Heavy duty.
• High Quality.
• 5 drawers general tools trolley.
• Heavy Duty universal castor wheels.
• Two wheel with foot Locks.
• Sturdy and Ergonomic design.
• Insulated work top for easy working.
• Single Key lock for all drawers.
• Supplied in colours as per OEM requirements.
• High Quality channels. Optional tool insert.

AAM 9900

Multifunctional resistance spot welder with C-type gun. Transformer Type Traditional Welders. Also available Inverter with dual full bridge soft switching circuit technology providing quality spot welds with all new high-strength steels.

• 9900 AMP

• Automatic mains voltage monitoring.

• Overheat protection.

• Designed for dent pulling of different kinds of car steels such as conventional steel, stainless steel, etc.

• With HUA curved silicon steel sheet and energy efficient main transformer.

• With DELIXI, OMRON and PANASONIC high quality relay.

• High precision time adjustment system.

• Single-sided and double-sided welding.

QPRS

• Input Voltage: AC 220V/380V 1ph 50/60Hz 12.3kW

• Input Power: 32A

• Input Current: 2000A

• Max Welding Current: 42*72*89cm/22*35*25 cm• Dimensions Weight: 23kg/22kg

Accessories:

Welding Gun for steel, Earth cable for steel, Auto weld cable with clamp, 440 Crossbar lifter, Contour gauge (short and long type), Quick repair puller, wavy wire welding tool, Straight pulling ring welding tool, Auto welding side hammer, Hook slide hammer, Car body file, Glue pulling tabs, Steel wire brush, Hot glue gun, Hot melt glue stick, CNS sanding disc, Accessories for steel (in a box), Side pulling hammer, Peg hook, Metal stick, Main Machine, Cart.

For removal of exhaust emissions from inside the workshop, captures and removes exhaust emission at source.

Designed and developed in India by AAM Automotives, high quality, high temperature and crushproof hoses. Ideal for automotive workshops and engine test beds. Different Type of Nozzles to fit various tail pipes.

Technique and Tools for removal of Soft Dents. No need to Repaint the finished repair area.

Fix Hail damages, Fix internal damages, PDI, Showroom Cars. Earn Extra Revenue for Workshop/Bodyshop. Fast, Efficient and Economical. Quick Returns. Customer Delight.

 Made from aluminum alloy and 304 grade bright    reflectors.

Equipped with 21" quartz short wave infrared halogen lamps. Automatic device with LED display electronic timer and power settings. Automatic overload protection. Each emitter can be independently controlled.

Approved by MSIL & BMW

Elegant appearance, Fast generation and high purity. Professional energy efficiency management better saves energy. User defined nitrogen generation purity (efficiency) can meet the needs of all users. When pipe is connected to tire, inflate the pre-set pressure automatically and precisely. Automatically vacuum and inflate the tires which are to be inflated for the first time.

Direct measurement. No push compensation is needed.
Mobile cabinet can be moved to fit different working site. Automatically track targets. Can be used with pit and all lifts like small scissor, 2-post lift etc.
Beam automatically moves to any height.

Super strong anti-light interference infrared CCD measurement. Mutual control operation between sensors and PC. Low chassis measurement. Lift data freezing adjustment(JACK-HOLD). Lift runway calibration and compensation. Sensors with touch-key, LCD display.

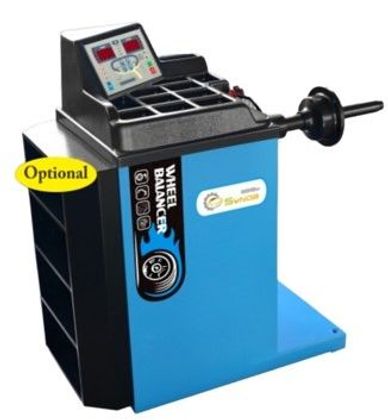

Ring shaped LED lighting for easy measurement and clamping or sticking weight. Complete self diagnosis and built in error inquiry, convenient for maintenance and repair.

Spherical mirror for easy sticking weight. First time brake at the unbalance point. Optional motorcycle adaptors, allowing motorcycle dynamic and static balance.

Safe hook protect the Tyre from falling. Light aluminum alloy body, easy to push. Long life span DC motor which allows one million operation times. 24V, working 300 times when fully charged.
